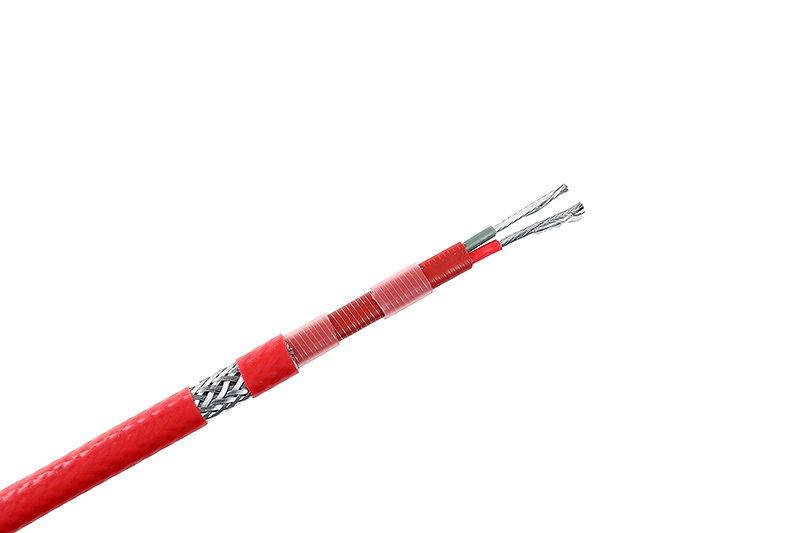

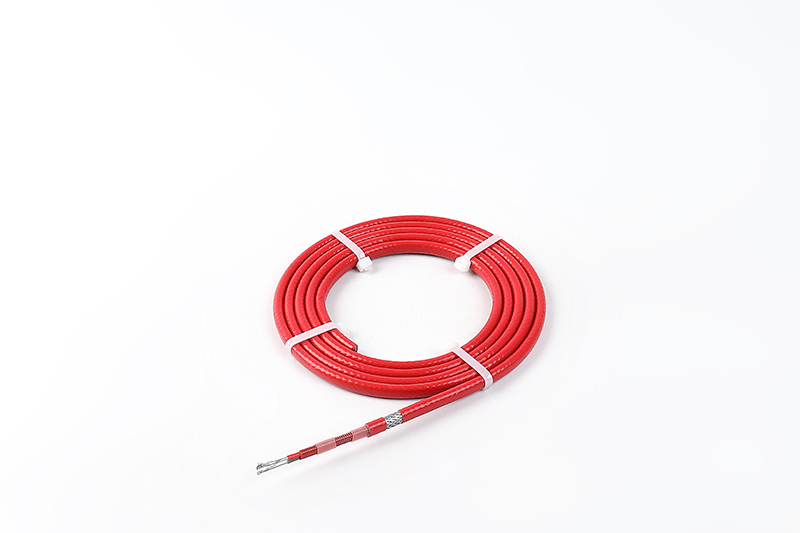

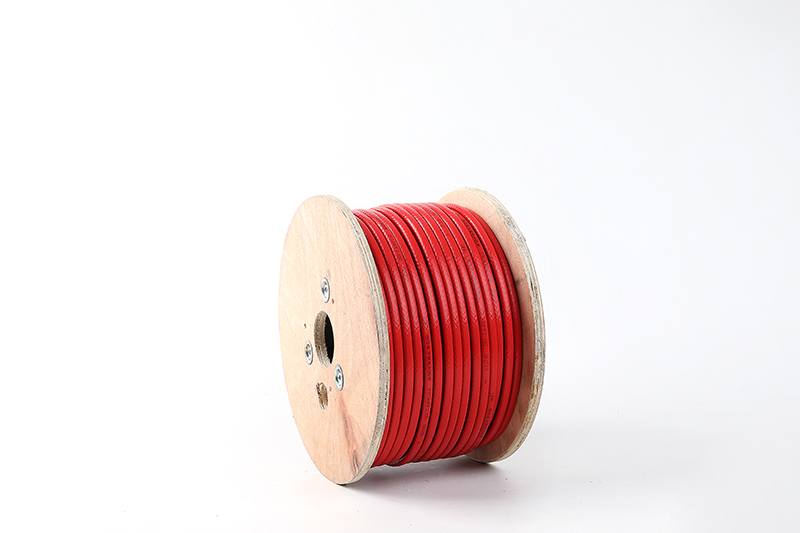

HBL Series Constant Wattage Heat Cable

HBL Series Constant Wattage Heat Cable which is also known as series resistance heat cable, heating cable, heat tracing cable, or heater cable.

HBL is a electrical constant wattage heating cable for long pipes or vessels where can be used for freeze protection or temperature maintenance in industrail field.
It is normally suited to big diameter pipes such as oil line.
HBL can be cut-to-length at site.
It is approved for use in non-hazardous and hazardous areas.
Its constant wattage characteristics can make it possible for steady thermal output against its thermostat, like PT100 sensor.
HBL can supply constant wattage regardless of the output of the current and voltage drop where it used for.
It also can be manufactured by custom color and size.
Please use approved accessories with HBL constant wattage heat cable.

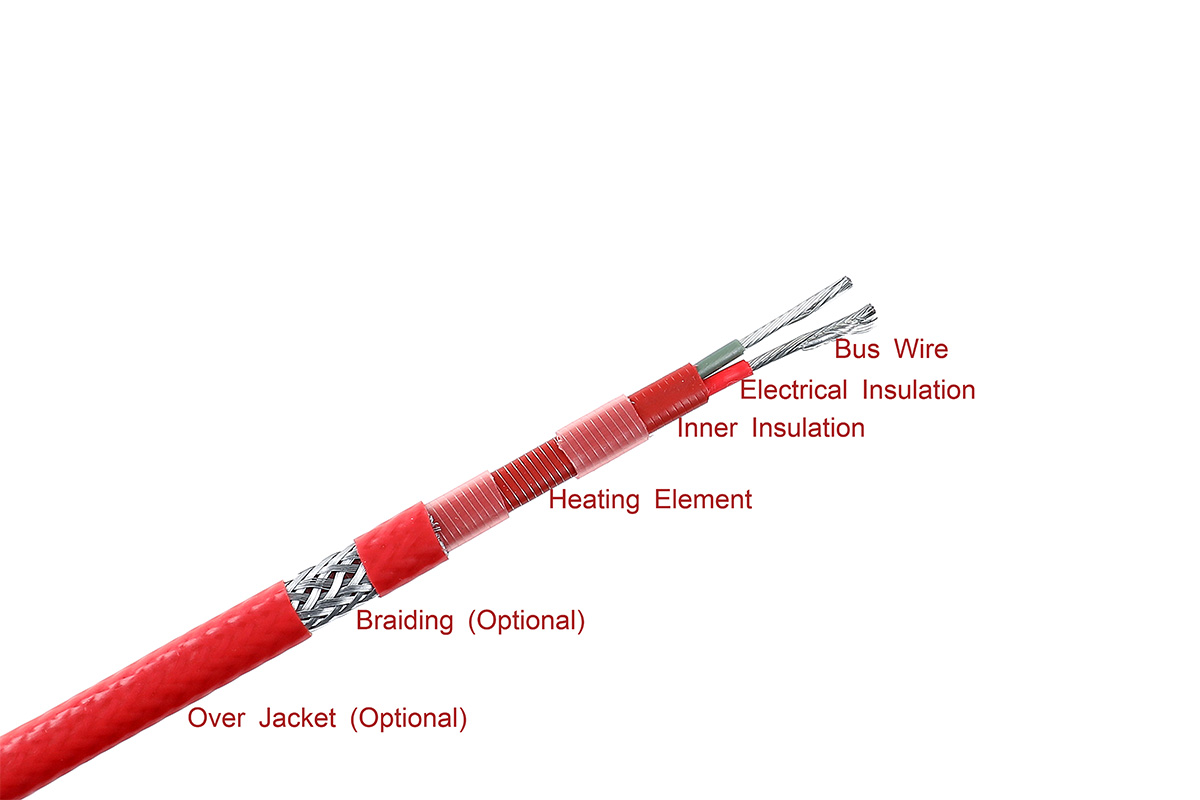

BUS WIRE:	Tinned-Copper or Nickel Plated Copper Conductor
ELECTRICAL INSULATION:	Fluoropolymer(F46) or Perfluoroalkoxy(PFA)
INNER INSULATION:	Fluoropolymer(F46) or Perfluoroalkoxy(PFA)
HEATING ELEMENT:	Nickel-based Alloy Wire
OUT INSULATION:	Fluoropolymer(F46) or Perfluoroalkoxy(PFA)
BRAIDING (Optional):	Tinned-Copper Wire
OVER JACKET(Optional):	Fluoropolymer(F46)

MAX. CONTINUOUS EXPOSURE TEMPERATURE (Power off):	230ºC (446ºF)
MIN. OPERATING TEMPERATURE:	-25℃ (-13℉)
POWER SUPPLY:	AC 220/380V
MIN. BENDING RADIUS：	30mm
OUTPUT:	10, 20, 30, 40, 50, 60 W/m
COLOR:	Red or Custom
TEMPERATURE CLASSIFICATION:	T4 135℃（275ºF）, T5 100℃（212ºF）, T6 85℃(185ºF)
